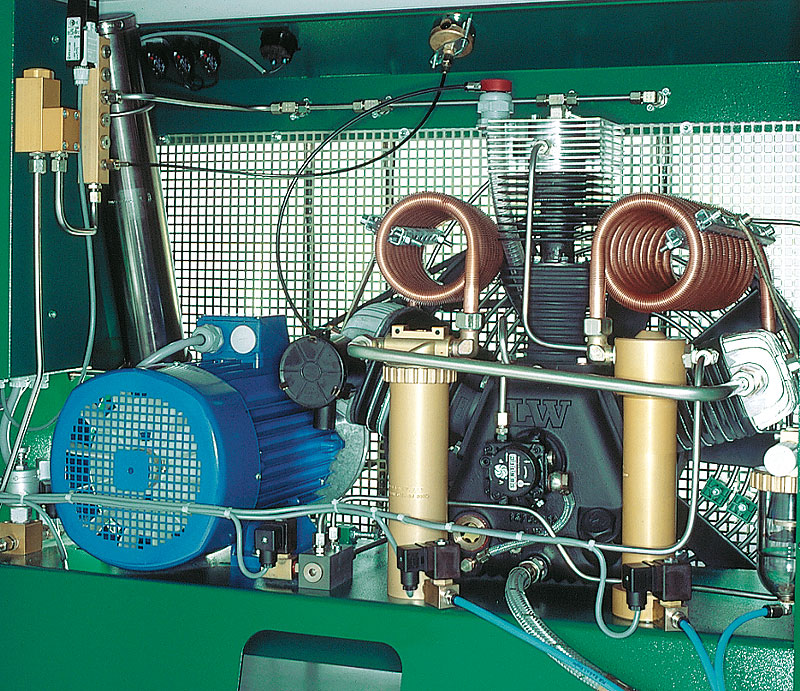

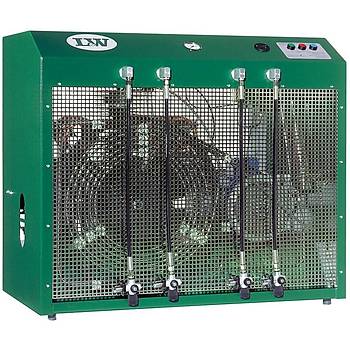

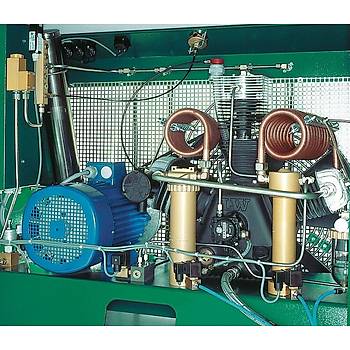

LW 450 E
The LW 450 E is a very slow running compressor with very low maintenance intervals and maintenance costs. It can be used continuously and comes fully wired with star / delta connection. High reliability make this compressor the favorite of many users.
Specifications
- Electro motor (E-Motor / 400V / 3 Phase / 50 Hz)
- Painted steel housing (RAL 6026)
- Automatic condensate drain
- Automatic stop at final pressure
- Hour counter
- Operating panel with start/stop and condensate test button, as well as emergency stop switch
- 4x Filling hose c/w filling valve
- Motor protection switch
- Safety switch
- Pressure maintaining and non return valve
- All pistons c/w steel piston rings
- Low pressure oil pump and filter
- Oil- / Water separators in stainless steel
- Safety valves after each stage
- 3 concentric suction/pressure valves
- Filling pressure of your choice (200 or 300 bar)
- Connections to your choice
(DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
- Breathing air purification an accordance to EN 12021
Options
- Auto start system
- 200 and 300 bar parallel filling pressures
- Oil pressure gauge
- Intermediate pressure gauges
- Oil pressure monitoring c/w auto shut down
- Cylinder head temperature monitoring with auto shut down
- Oil temperature display with auto shut down
- Puracon filter monitoring (Auto shut down also available)
- ECC control in remote control box
- Phase monitoring c/w shut down at wrong direction of rotation
- Additional high pressure outlet
- Power cable and plug
- Special voltages / frequencies on request
Technical Data
LW 450 E |
|
Type: |
Air cooled piston compressor |
Capacity [l/min] / [Nm³/h] / [cfm]: |
450 / 27.0 / 15.9 |
Max. Pressure [bar]: |
350 |
RPM [1/min]: |
1100 |
No of cylinders / No of stages: |
3 / 3 |
Prime mover type: |
E-Motor / 400V / 3 Phase / 50 Hz |
Drive power [kW] / [HP]: |
11.0 / 15.0 |
Cooling air requirement [Nm³/h]: |
3300 |
Lubrication type: |
Oil pump + Splash oil |
Oil capacity [l] / Oil pressure [bar]: |
2.2 /2.2 (+/- 0.5) |
Operating temperature [°C]: |
+5°C to +45°C |
Filter capacity [m³ at +20°C]: |
900 (approx. 33 h) |
Dimensions L x W x H [cm]: |
118 x 64 x 98 |
Weight [kg]: |
280 |
Noise level (measured at 1 m) [dB]: |
83 |
