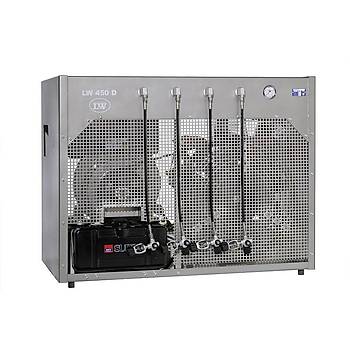

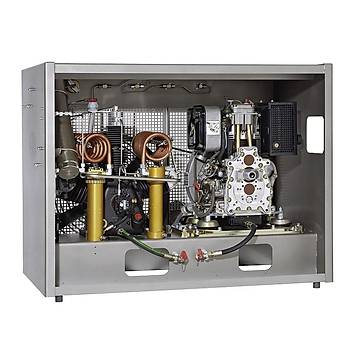

LW 450 D Basic
The LW 450 D Basic is ideal for use on a remote island, a safari boat or in an autonomous truck. This 450 litre compressor is equipped with a hatz diesel motor, 12 volt control, automatic start, automatic condensate drain and an integrated filling unit with four hoses and filling valves. The Basic version includes an integrated filling device c/w four filling hoses and filling valves.
Specifications
- Hatz 10kW diesel engine in Hatz Silent Pack c/w hand start
- Original Hatz diesel tank
- Wet painted steel housing (RAL 7004)
- Manuel condensate drain
- Automatic idle speed selector when end pressure is reached (compressor switches to full speed)
- 4x Filling hose and filling valve
- Pressure maintaining and non-return valve
- All pistons c/w steel piston rings
- Low pressure oil pump
- Oil- / water separators after each stage
- Safety valves after each stage
- 3x concentric suction/pressure valves
- Filling pressure to your choice (200 or 300 bar)
- Connections to your choice
(DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
- Breathing air purification an accordance to EN 12021
Options
- 200 and 300 bar parallel filling pressures
- Oil pressure gauge
- Intermediate pressure gauges
- Electrical start
- Hour counter
- Oil pressure monitoring c/w auto shut down
- Automatic condensate drain
- Additional high pressure outlet
Technical Data
LW 450 D Basic |
|
Type: |
Air cooled piston compressor |
Capacity [l/min] / [Nm³/h] / [cfm]: |
450 / 27.0 / 15.9 |
Max. Pressure [bar]: |
350 |
RPM [1/min]: |
1100 |
No of cylinders / No of stages: |
3 / 3 |
Prime mover type: |
Diesel engine, electric start |
Drive power [kW] / [HP]: |
10.0 / 14.3 |
Cooling air requirement [Nm³/h]: |
3300 |
Lubrication type: |
Oil pump + Splash oil |
Oil capacity [l] / Oil pressure [bar]: |
2.2 / 2.2 (+/- 0.5) |
Operating temperature [°C]: |
+5°C to +45°C |
Filter capacity [m³ at +20°C]: |
750 (approx. 28 h) |
Dimensions L x W x H [cm]: |
127 x 74 x 100 |
Weight [kg]: |
400 |
Noise level (measured at 1 m) [dB]: |
95 |
