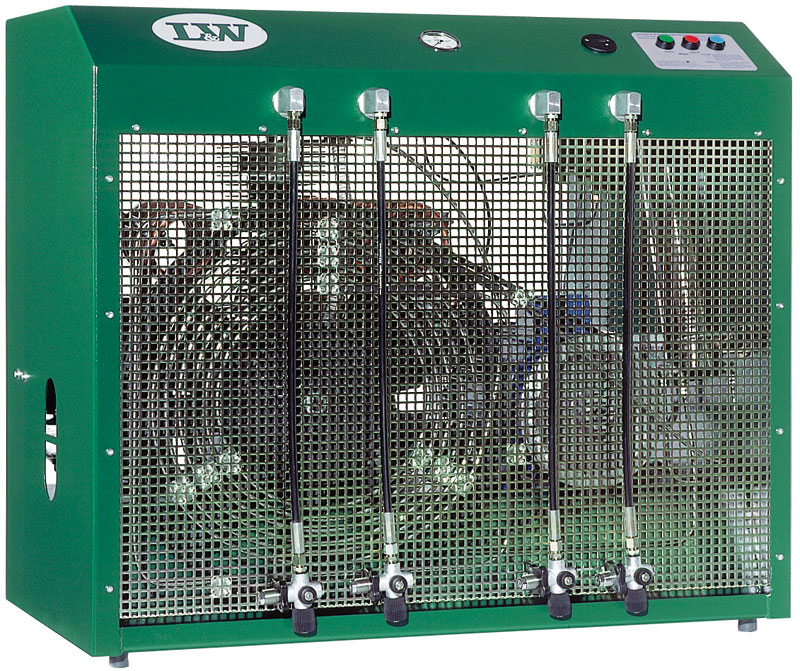

LW 300 E

Specifications

• Electro motor (E-Motor / 400V / 3 Phase / 50 Hz)
• Painted steel housing (RAL 6026)
• Automatic condensate drain
• Automatic stop at final pressure
• Hour counter
• Operating panel with start/stop and condensate test button, as well as emergency stop switch
• 4x Filling hose c/w filling valve
• Motor protection switch
• Safety switch
• Pressure maintaining and non return valve
• All pistons c/w steel piston rings
• Low pressure oil pump and filter
• Oil- / Water separators in stainless steel
• Safety valves after each stage
• 3 concentric suction/pressure valves
• Filling pressure of your choice (200 or 300 bar)
• Connections to your choice
  (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
• Breathing air purification an accordance to EN 12021

Options

• Auto start system
• 200 and 300 bar parallel filling pressures
• Oil pressure gauge
• Intermediate pressure gauges
• Oil pressure monitoring c/w auto shut down
• Cylinder head temperature monitoring with auto shut down
• Oil temperature display with auto shut down
• Puracon filter monitoring (Auto shut down also available)
• ECC control in remote control box
• Phase monitoring c/w shut down at wrong direction of rotation
• Additional high pressure outlet
• Power cable and plug
• Special voltages / frequencies on request

Technical Data
