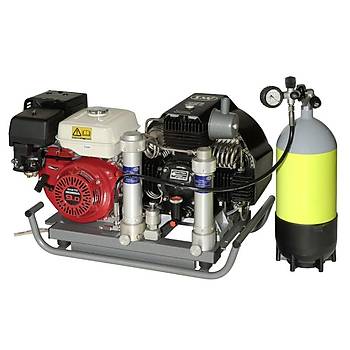

LW 245 B
User-friendly compressor with 4-stroke power and in a compact design. The portable LW 245 B is ideal for mobile applications or occasional filling operations. He is a popular compressor for expeditions and safaris.
Specifications
- 4 stroke drive motor c/w pull start and auto cut off at low oil level
- Steel frame c/w carrying handles
- Manual condensate drain
- Inclusive air intake pipe
- Pressure maintaining and non return valve
- 1x Filling hose c/w filling valve and pressure gauge
- Intermediate coolers
- Stainless steel pipes
- Oil- / Water separators after 2nd and 3rd stage
- Safety valves after each stage
- Filling pressure to your choice (200 or 300 bar)
- Connections to your choice
(DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
- Breathing air purification an accordance to EN 12021
Options
- Additional filling hose c/w filling valve
- Automatic stop at final pressure
- Switch over device for 200 and 300 bar
- Hour counter
- Conversion set: Petrol-/electro version
Technical Data
LW 245 B |
|
Type: |
Air cooled piston compressor |
Capacity [l/min] / [Nm³/h] / [cfm]: |
245 / 14.7 / 8.7 |
Max. Pressure [bar]: |
330 |
RPM [1/min]: |
1900 |
No of cylinders / No of stages: |
3 / 3 |
Prime mover type: |
4 stroke drive motor (pull start) |
Drive power [kW] / [HP]: |
6.6 / 8.9 |
Cooling air requirement [Nm³/h]: |
1980 |
Lubrication type: |
Splash oil |
Oil capacity [l]: |
0.8 |
Operating temperature [°C]: |
+5°C to +45°C |
Filter capacity [m³ at +20°C]: |
166 (approx. 11.3 h) |
Dimensions L x W x H [cm]: |
92 x 43 x 57 |
Weight [kg]: |
99 |
Noise level (measured at 1 m) [dB]: |
93 |
