      LW 230 ES KOMPRESOR

      LW 230 ES KOMPRESOR
      LW 230 ES KOMPRESOR
      Görsel 1
      Görsel 2
      Fiyat:
      190.720,11 TL
      İndirimli Fiyat (%4) :
      183.091,30 TL
      Kazancınız 7.628,81 TL
      183091.30 www.denizmarketiyiz.biz
      Temin edildiğinde

      Bu ürünün yerine tercih edebileceğiniz ürünler

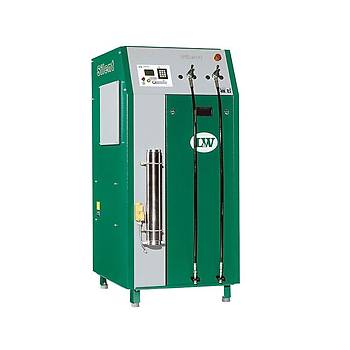

      LW 230 ES

      The LW 230 ES is ideal for dive shops, diving clubs and diving schools, as well as medium-sized breathing air filling station. The three-stage compressor is sound insulated and operates at low speed. It is also suitable for continuous operation. It offers long service intervals, low maintenance costs and, through the oversized industrial components maximum reliability. It comes fully wired with star/delta start cycle.


      Specifications

      • Electro motor (E-Motor / 400V / 3 Phase / 50 Hz)
      • Painted steel housing (RAL 6026)
      • Sound insulated housing
      • Automatic condensate drain
      • Automatic stop at final pressure
      • Hour counter
      • Operating panel with start/stop and condensate test button, as well emergency stop switch
      • 2 x Filling hose c/w filling valve
      • Pressure maintaining and non return valve
      • All pistons c/w steel piston rings
      • Low pressure oil pump and filter
      • Oil- / Water separators in stainless steel
      • Safety valves after each stage
      • 3x concentric suction/pressure valves
      • Filling pressure to your choice (200 or 300 bar)
      • Connections to your choice
        (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
      • Breathing air purification an accordance to EN 12021


      Options

      • Auto start system
      • Up to 6 additional hoses available
      • 200 and 300 bar parallel filling pressures
      • Motor protection switch
      • Oil pressure gauge
      • Intermediate pressure gauges
      • Oil pressure monitoring c/w auto shut down
      • Cylinder head temperature monitoring with auto shut down
      • Oil temperature display with auto shut down
      • Puracon filter monitoring (Auto shut down also available)
      • ECC control
      • Phase monitoring c/w shut down at wrong direction of rotation
      • Additional high pressure outlet
      • Power cable and plug
      • Special voltages / frequencies on request


      Technical Data


      LW 230 ES
      Type: Air cooled piston compressor
      Capacity [l/min] / [Nm³/h] / [cfm]: 230 / 13.8 / 8.1
      Max. Pressure [bar]: 350
      RPM [1/min]: 1080
      No of cylinders / No of stages: 3 / 3
      Prime mover type: E-Motor / 400V / 3 Phase / 50 Hz
      Drive power [kW] / [HP]: 5.5 / 7.5
      Cooling air requirement [Nm³/h]: 1650
      Lubrication type: Splash oil
      Oil capacity [l] / Oil pressure [bar]: 1.8 / 0.6 - 4.0
      Operating temperature [°C]: +5°C to +45°C
      Filter capacity [m³ at +20°C]: 900 (approx. 72 h)
      Dimensions L x W x H [cm]: 76 x 103 x 163
      Weight [kg]: 330
      Noise level (measured at 1 m) [dB]: 61
