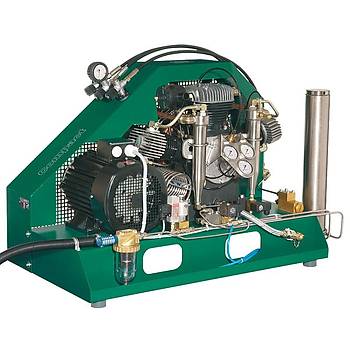

      LW 230 E

      The Compact series is ideal for dive centers, ships and boats with limited space. Based on our 280 blocks, these compressors can be equipped individually and used as stationary system. They come fully wired with star/delta start system.


      Specifications

      • Electro motor (E-Motor / 400V / 3 Phase / 50 Hz)
      • Painted steel frame and fan belt guard (RAL 6026)
      • Hour counter
      • Start/ Stop and emergency stop switch
      • Manual condensate drain
      • 1x Filling hose c/w filling valve
      • Pressure maintaining and non return valve
      • All pistons c/w steel piston rings
      • Low pressure oil pump and filter
      • Oil- / Water separators in stainless steel
      • Safety valves after each stage
      • 3x concentric suction/pressure valves
      • Filling pressure to your choice (200 or 300 bar)
      • Connections to your choice
        (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
      • Breathing air purification an accordance to EN 12021


      Options

      • Automatic condensate drain
      • Automatic stop at final pressure
      • Auto start system
      • Motor protection switch
      • 200 and 300 bar parallel filling pressures
      • Oil pressure gauge and intermediate pressure gauges
      • Oil pressure monitoring c/w auto shut down
      • Cylinder head temperature monitoring with auto shut down
      • Puracon filter monitoring (Auto shut down also available)
      • Phase monitoring c/w shut down at wrong direction of rotation
      • Additional high pressure outlet
      • Power cable and plug
      • Special voltages / frequencies on request


      Technical Data


      LW 230 E Compact
      Type: Air cooled piston compressor
      Capacity [l/min] / [Nm³/h] / [cfm]: 230 / 13.8 / 8.1
      Max. Pressure [bar]: 350
      RPM [1/min]: 1080
      No of cylinders / No of stages: 3 / 3
      Prime mover type: E-Motor / 400V / 3 Phase / 50 Hz
      Drive power [kW] / [HP]: 5.5 / 7.5
      Cooling air requirement [Nm³/h]: 1650
      Lubrication type: Splash oil
      Oil capacity [l] / Oil pressure [bar]: 1.8 / 0.6 - 4.0
      Operating temperature [°C]: +5°C to +45°C
      Filter capacity [m³ at +20°C]: 900 (approx. 72 h)
      Dimensions L x W x H [cm]: 120 x 60 x 90
      Weight [kg]: 195
      Noise level (measured at 1 m) [dB]: 83
