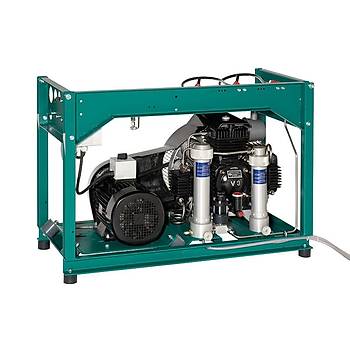

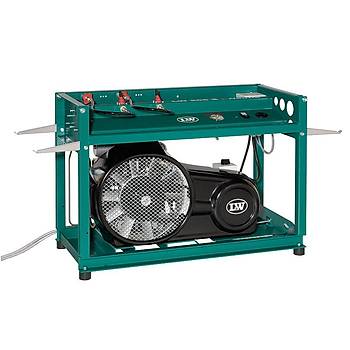

LW 200 E Nautic

The user-friendly electric-powered compressor in a compact design makes this compressor ideal for stationary filling operations. Due to crash frame, carrying handles and lifting, the LW 200 E Nautic is also easy to use as a mobile system. Optional it is available with seawater-resistant lightweight aluminum frame.



Specifications

• Electro motor (Standard: 400V, 3 phase, 50Hz)
• Power cable with plug and phase selector
• Bedienpaneel mit Laufkontrollleuchte, Not-Aus und Start/Stopp Schalter
• Hour counter and integrated pressure gauge
• Crash frame c/w 4 carrying handles and sling eyes (Colour: RAL 6026)
• Manual condensate drain
• 2 self-venting lever operated filling valves c/w hoses and connections
• Pressure maintaining and non return valve
• Stainless steel intermediate coolers
• Stainless steel pipes
• Oil- / Water separators after 2nd and 3rd stage
• Safety valves after each stage
• Filling pressure to your choice (200 or 300 bar)
• Connections to your choice
  (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
• Breathing air purification an accordance to EN 12021



Options

• Two additional filling hoses
• Automatic condensate drain
• Automatic stop at final pressure
• Auto start system
• 200 and 300 bar parallel filling pressures
• Motor protection switch
• Additional high pressure outlet
• Special voltages / frequencies on request
• Aluminium frame (AL-Version)



Technical Data


LW 200 E Nautic
Type:	Air cooled piston compressor
Capacity [l/min] / [Nm³/h] / [cfm]:	200 / 12 / 7.0
Max. Pressure [bar]:	330
RPM [1/min]:	1530
No of cylinders / No of stages:	3 / 3
Prime mover type:	E-Motor / 400V / 3 Phasen / 50 Hz
Drive power [kW] / [HP]:	5.5 / 7.5
Cooling air requirement [Nm³/h]:	1200
Lubrication type:	Splash oil
Oil capacity [l]:	0.8
Operating temperature [°C]:	+5°C to +45°C
Filter capacity [m³ at +20°C]:	200 (approx. 17 h)
Dimensions L x W x H [cm]:	103 x 50 x 73
Weight [kg]:	137 / 117 (Al)
Noise level (measured at 1 m) [dB]:	86
