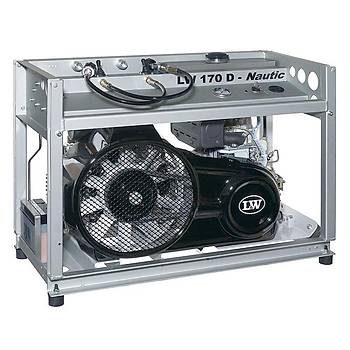

      LW 170 D AL Nautic

      The user-friendly compressor Nautic LW 170 D with Yanmar diesel engine in a compact design, is used by marine biologists and dive boats, as well as military, police, rescue and disaster relief groups. It is very robust and due to carrying handles perfectly suited for mobile applications. Optional it is available with seawater-resistant lightweight aluminum frames.


      • Yanmar L70 4.8 kW diesel motor c/w 12 V elektric start (additional pull start)
      • Instrument panel c/w key start and generator warning lamp
      • Hour counter and integrated pressure gauge
      • Crash frame c/w 4 carrying handles and sling eyes (Colour: RAL 6026)
      • Manual condensate drain
      • 2 self-venting lever operated filling valves c/w hoses and connections
      • Stainless steel diesel tank (Capacity: 7 hours running time)
      • Inclusive intake pipe
      • Pressure maintaining and non return valve
      • Stainless steel intermediate coolers
      • Stainless steel pipes
      • Oil- / Water separators after 2nd and 3rd stage
      • Safety valves after each stage
      • Filling pressure to your choice (200 or 300 bar)
      • Connections to your choice
        (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
      • Breathing air purification an accordance to EN 12021


      • Two additional filling hoses
      • Automatic condensate drain
      • Automatic stop at final pressure
      • 200 and 300 bar parallel filling pressures
      • Motor protection switch
      • Additional high pressure outlet
      • Aluminium frame (AL-Version)

      Technical Data

      LW 170 D Nautic
      Type: Air cooled piston compressor
      Capacity [l/min] / [Nm³/h] / [cfm]: 170 / 10.2 / 6.0
      Max. Pressure [bar]: 330
      RPM [1/min]: 1530
      No of cylinders / No of stages: 3 / 3
      Prime mover type: Air cooled diesel engine (electric start)
      Drive power [kW] / [HP]: 4.8 / 6.5
      Cooling air requirement [Nm³/h]: 1650
      Lubrication type: Splash oil
      Oil capacity [l]: 0.8
      Operating temperature [°C]: +5°C to +45°C
      Filter capacity [m³ at +20°C]: 150 (approx. 14,7 h)
      Dimensions L x W x H [cm]: 103 x 50 x 73
      Weight [kg]: 150 / 125 (Al)
      Noise level (measured at 1 m) [dB]: 92
      Diğer Özellikler
      Stok Kodu04-ADT527/LW170D
      Stok DurumuBu ürün geçici olarak temin edilememektedir.
